Asus ROG STRIX Z690-I GAMING WIFI

UPC:195553460965

Características
Zócalo Intel®LGA 1700: listo para procesadores Intel Core ™, Pentium® Gold y Celeron® de 12.a generación
Solución de alimentación óptima: etapas de potencia 10 + 1 con conector de alimentación ProCool II, estranguladores de aleación de alta calidad y condensadores duraderos para admitir procesadores de varios núcleos

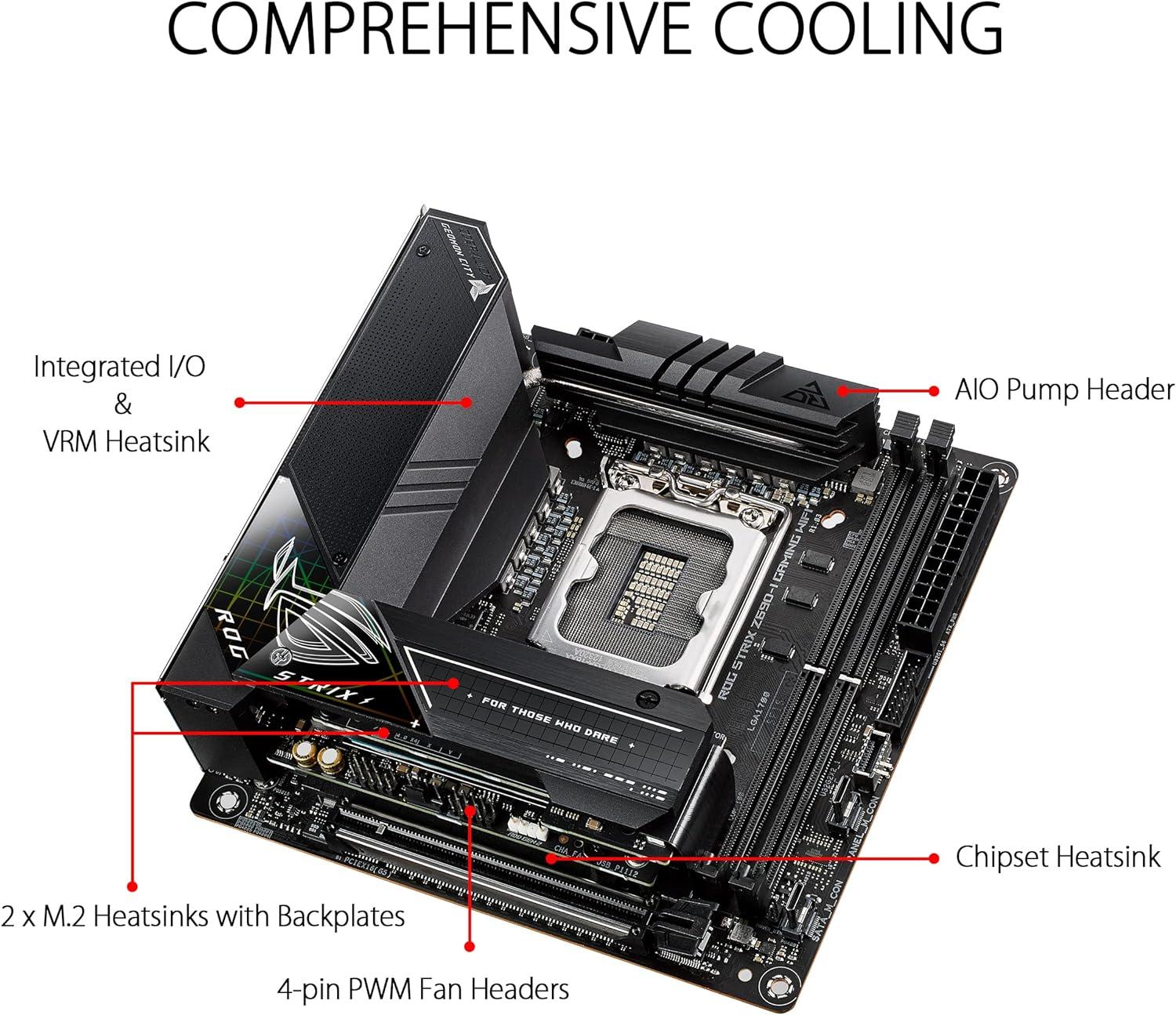

Diseño térmico optimizado: cubierta de E / S integrada y disipadores de calor VRM con almohadilla térmica de alta conductividad, tubo de calor en forma de L, dos disipadores de calor M.2 integrados y placas posteriores
Redes de alto rendimiento: Intel® WiFi 6E (802.11ax) integrado e Intel® 2.5 Gb Ethernet con ASUS LANGuard
La mejor conectividad para juegos: admite HDMI® 2.1, dos ranuras M.2, 2 x ThunderboltTM 4 y 1 x USB 3.2 Gen 2x2 Type-C®
Control inteligente: Overclocking AI exclusivo de ASUS, AI Cooling, AI Networking y Two-Way AI Noise-Cancelation para simplificar la configuración y mejorar el rendimiento
Diseño amigable para el bricolaje: tarjeta SATA de panel frontal ROG incluida, Q-Latch M.2, protector de E / S premontado, botón BIOS FlashBack ™ y botón Clr CMOS
Personalización incomparable: iluminación Aura Sync RGB exclusiva de ASUS, que incluye un encabezado RGB y dos encabezados Gen 2 direccionables
Audio para juegos líder en la industria: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III
Software de renombre: versión de prueba gratuita de 60 días de AIDA64 Extreme incluida y panel de control UEFI BIOS intuitivo con MemTest86 integrado
Especificaciones:
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
Intel® Z690 Chipset
Graphics
1 x HDMI 2.1
Expansion Slots
Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot(s)***
* Please check PCIe bifurcation table in support site.
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
*** Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth
Intel® Wi-Fi 6E
"Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. "
USB
Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Audio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

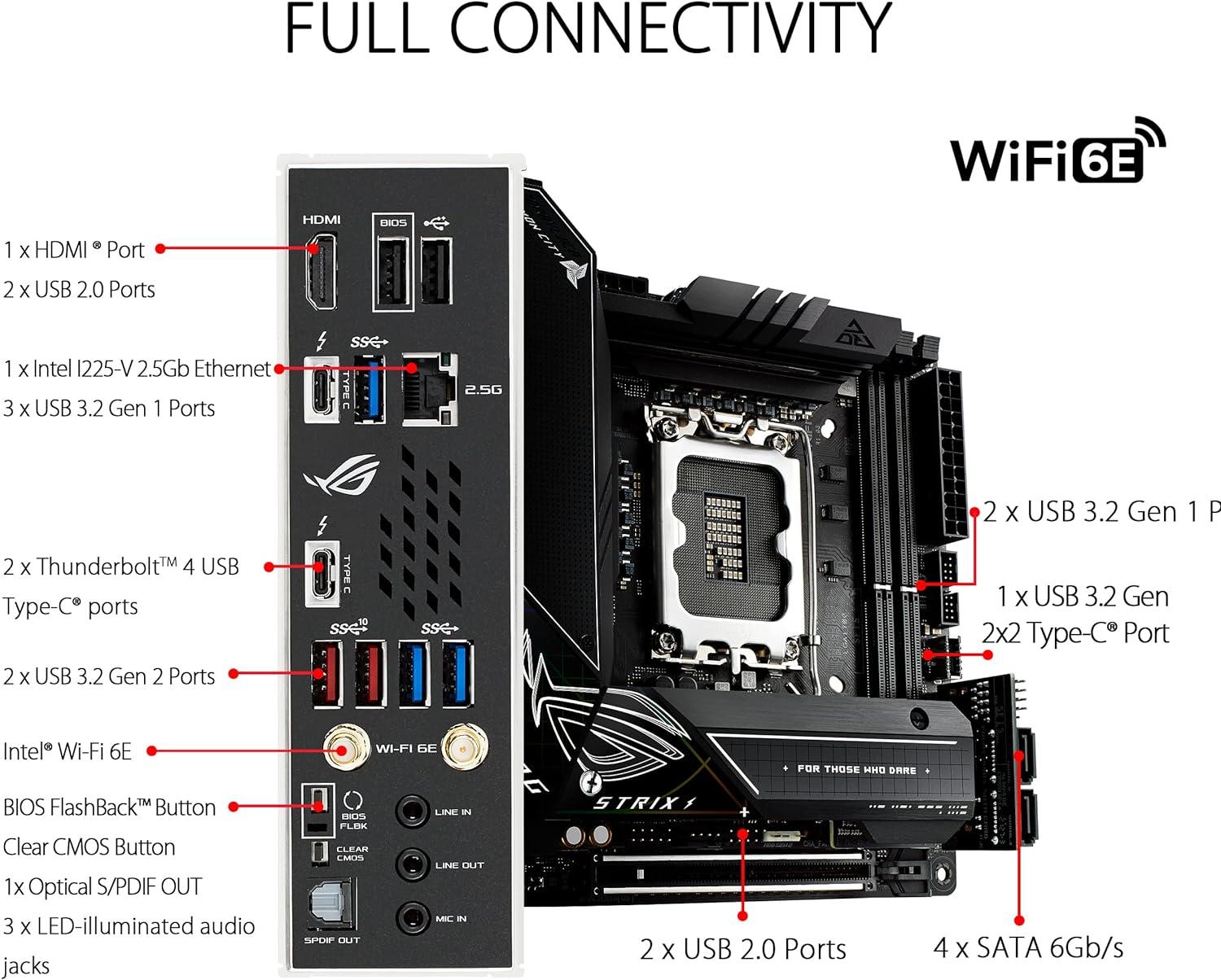

Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x 2 pin POWER_BTN header
2 x USB Type-C® connectors to Install ROG Strix Front panel SATA card*
* Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header.
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
Mini ITX
17cm x 17cm
